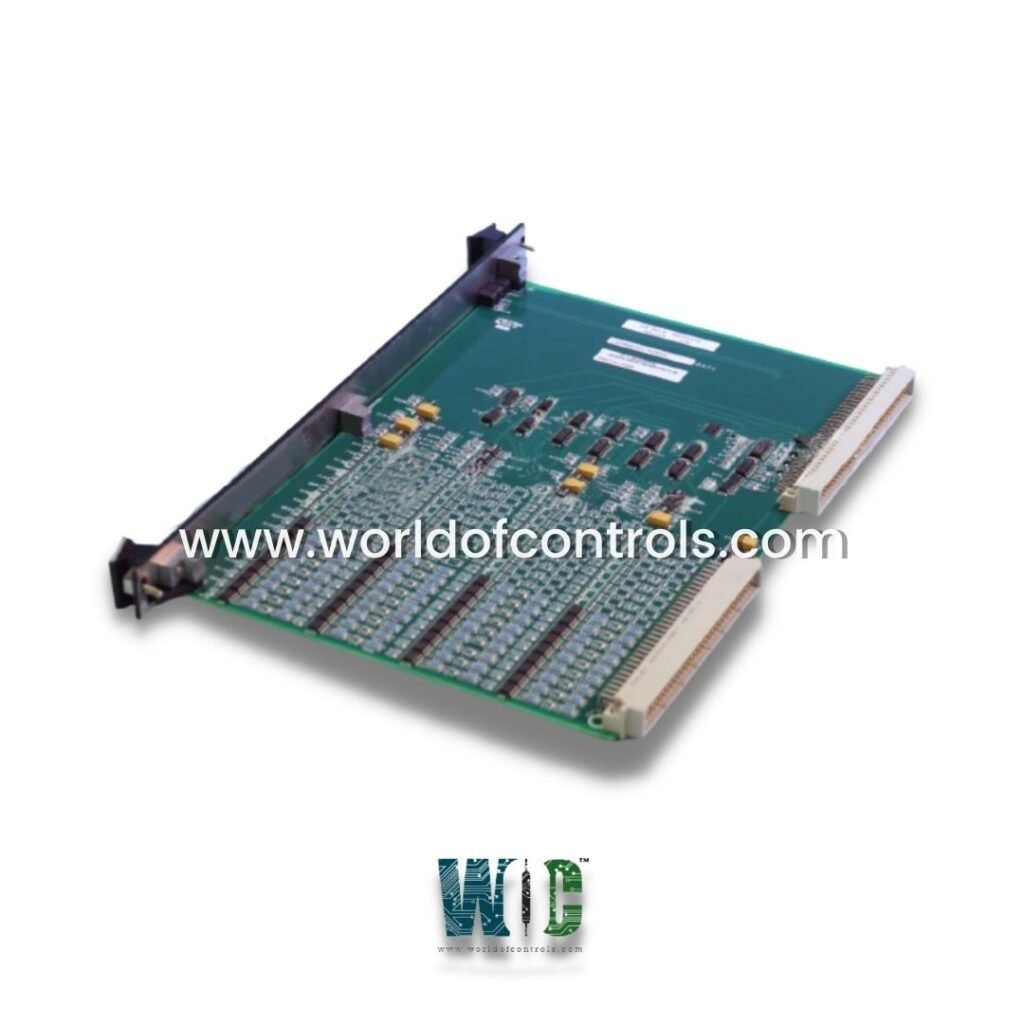

IS200ESELH2AAA

A Step-by-Step Guide to Installing an Exciter Selector Board

Introduction

When it comes to maintaining and upgrading electrical systems, understanding how to install an exciter selector board is a valuable skill. Whether you’re a professional technician or a DIY enthusiast, proper installation ensures the longevity and functionality of your equipment. In this guide, we’ll walk you through the process step by step.

Understanding Exciter Selector Boards

Definition and Function

An exciter selector board is a critical component in various electrical systems, especially in power generation and distribution. It helps manage the excitation system, which is essential for controlling the voltage output of generators.

Common Applications

These boards are commonly used in power plants, industrial facilities, and any setting where reliable and stable power generation is crucial. By selecting and controlling the excitation source, these boards ensure that generators operate efficiently.

Tools and Materials Needed

Essential Tools

Before you begin, gather the following tools:

  • Screwdrivers (flathead and Phillips)
  • Wire strippers and cutters
  • Multimeter
  • Socket set
  • Insulated pliers

Necessary Materials

You’ll also need these materials:

  • Exciter selector board
  • Mounting hardware
  • Electrical tape
  • Connectors and terminal blocks
  • Cable ties

Safety Precautions

Personal Protective Equipment (PPE)

Safety should always be your priority. Wear appropriate PPE, including:

  • Insulated gloves
  • Safety goggles
  • Protective clothing

Safety Measures to Follow

Always follow these safety measures:

  • Ensure the power is completely off before starting.
  • Use tools with insulated handles.
  • Follow lockout/tagout procedures to prevent accidental power-up.

Preparation Before Installation

Checking Compatibility

Verify that the exciter selector board is compatible with your system. Check the model number and specifications.

Preparing the Workspace

Clear and organize your workspace. Ensure you have good lighting and ample space to work.

Step 1: Power Down and Disconnect

Shutting Down the System

Turn off the main power supply to the system where the board will be installed.

Disconnecting Power Sources

Disconnect all power sources to ensure there’s no electricity flowing to the system.

Step 2: Access the Installation Area

Opening the Panel or Enclosure

Open the panel or enclosure where the board will be installed. This may require unscrewing or unlocking access points.

Identifying the Mounting Location

Locate the designated spot for the exciter selector board. It should be clear of obstructions and easily accessible.

Step 3: Mount the Exciter Selector Board

Positioning the Board

Place the board in the identified location. Ensure it’s aligned correctly.

Securing the Board

Use the mounting hardware to secure the board in place. Tighten screws or bolts securely.

Step 4: Connect the Wiring

Identifying Wires and Connectors

Identify all necessary wires and connectors. Refer to the wiring diagram provided with the board.

Making the Connections

Connect the wires to the appropriate terminals on the board. Ensure each connection is tight and secure.

Step 5: Verify Connections

Double-Checking All Connections

Double-check all connections to ensure they are correct and secure.

Ensuring Secure and Proper Fit

Ensure that all connectors are properly seated and that there are no loose wires.

Step 6: Power Up and Test

Reconnecting Power Sources

Reconnect the power sources to the system.

Initial Power-Up

Power up the system and monitor the board for any signs of issues.

Running Diagnostic Tests

Run diagnostic tests to ensure the board is functioning correctly. Check for any error codes or irregularities.

Troubleshooting Common Issues

No Power to the Board

If the board doesn’t power up, check the power connections and ensure the system is receiving power.

Faulty Connections

Inspect all connections for any faults. Re-seat any loose connectors.

Error Codes

Refer to the board’s manual to decode any error messages and take appropriate action.

Maintenance Tips

Regular Inspection

Regularly inspect the board for signs of wear and tear. Look for loose connections or damaged components.

Cleaning and Care

Keep the board clean and free of dust. Use a soft brush or compressed air to remove debris.

Conclusion

Installing an exciter selector board is a manageable task if you follow these steps carefully. Proper installation and regular maintenance are key to ensuring your system operates smoothly and efficiently.

Read More: The Role of Exciter Contact Terminal Boards in Power Generation Systems

FAQs

How long does the installation take?
The installation typically takes a few hours, depending on your familiarity with the process.

Can I install it myself, or do I need a professional?
While DIY installation is possible, hiring a professional is recommended for those unfamiliar with electrical systems.

What should I do if the board doesn’t power up?
Check all connections and ensure the power supply is active. Consult the troubleshooting section for more tips.

How often should I perform maintenance?
Perform maintenance checks every six months to ensure optimal performance.

Are there any signs that indicate the board needs replacement?
Frequent error codes, physical damage, or consistent performance issues are signs the board may need replacement.
